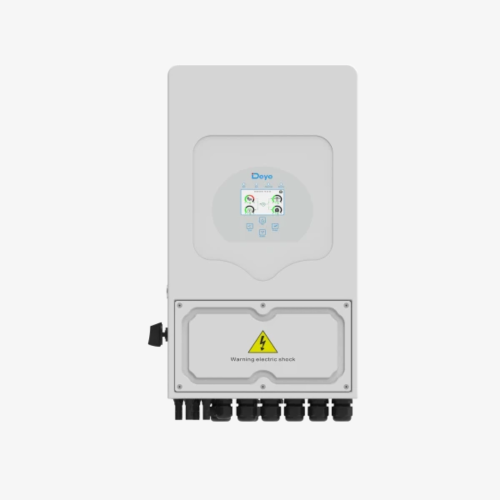

DEYE SUN-10K-SG01HP3-EU-AM2

Technical product features:

Hybrid functionality: Supports on-grid, off-grid, and battery storage applications

High charging/Discharging power: Max 50A charging/discharging current

Battery compatibility:

• Designed for high-voltage lithium-ion batteries (160V-700V)
• Adaptive BMS integration for efficient charging

Scalability:

• Supports up to 10 inverters in parallel for larger power demands

Advanced MPPT technology:

• Max PV input power: 16,000W
• MPPT voltage range: 150V-850V
• Max PV input current: 30A

AC Input/Output:

• Rated power: 10,000W
• Max apparent power: 11,000VA
• Grid voltage: 220/380V, 230/400V
• Grid frequency: 50Hz/60Hz

Peak power handling: 1.5 times the rated power for 10 seconds

Efficiency Ratings:

• Max efficiency: 97.6%
• European efficiency: 97.0%
• MPPT efficiency: >99%

Comprehensive protection:

• DC reverse polarity protection
• AC overvoltage, overcurrent, and short-circuit protection
• Ground fault detection and islanding protection
• Optional arc fault circuit interrupter (AFCI) for additional safety

Communication and monitoring:

• Supports GPRS, WiFi, Bluetooth, 4G, and LAN (optional)
• RS485, RS232, and CAN communication interfaces

IP65 rating: Dustproof and waterproof for indoor/outdoor installations

Cooling system: Intelligent air cooling for optimal heat dissipation

Physical dimensions: 408 × 638 × 237 mm

Weight: 30.5 kg
