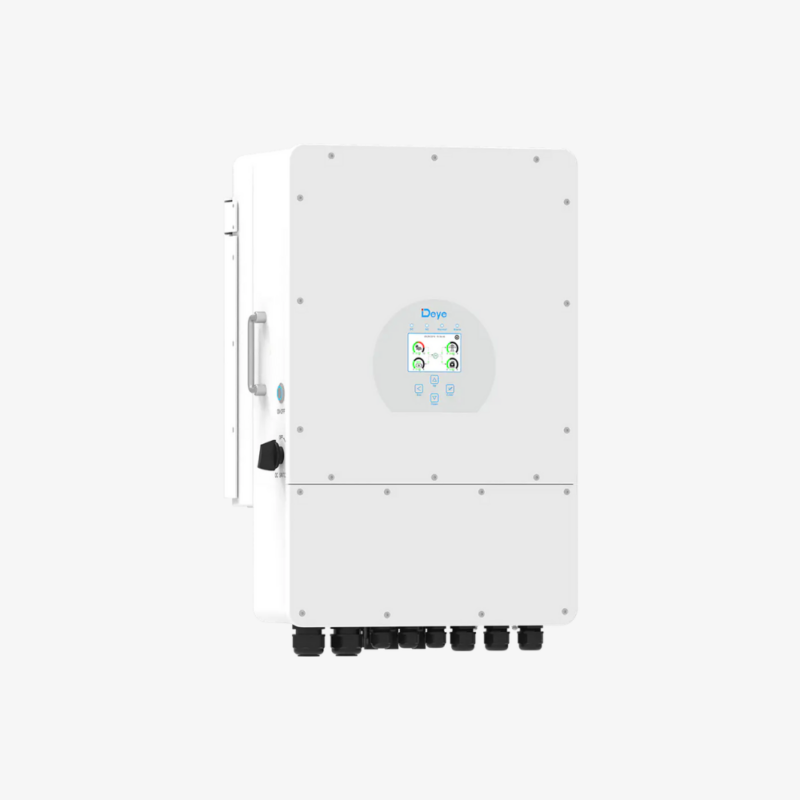

DEYE SUN-8K-SG04LP3-EU
The DEYE SUN-8K-SG04LP3-EU is a three-phase hybrid inverter designed for residential and small commercial solar energy systems. It supports on-grid, off-grid, and battery storage applications, ensuring optimized energy management and high-efficiency power conversion. Featuring dual MPPT tracking, intelligent battery integration, and multiple safety protections, this inverter provides reliable and flexible energy solutions.
Technical Product Features:
Hybrid Functionality:
Supports grid-tied, off-grid, and energy storage applications.
Allows energy storage from a diesel generator for backup power.
High Charging/Discharging Power:
Max charging current: 210A
Max discharging current: 210A
Battery Compatibility:
Compatible with 48V lithium-ion and lead-acid batteries.
Self-adaptive BMS integration for optimal battery performance.
Scalability & Parallel Operation:
Supports up to 10 inverters in parallel for large-scale installations.
AC coupling for seamless integration into existing solar systems.
Advanced MPPT Technology:
Max PV input power: 24,000W
MPPT voltage range: 200V-650V
Max PV input current: 45A per MPPT tracker
2 MPPT trackers for optimized energy harvesting.
AC Input/Output:
Rated Power: 8,000W
Max Apparent Power: 8,800VA
Grid Voltage: 220/380V, 230/400V
Grid Frequency: 50Hz/60Hz
Peak Power Handling:
2 times the rated power for 10 seconds (off-grid mode).
Efficiency Ratings:
Max Efficiency: 97.6%
European Efficiency: 97.0%
MPPT Efficiency: >99%
Comprehensive Protection & Safety:
DC reverse polarity protection
AC overvoltage, overcurrent, and short-circuit protection
Ground fault detection and islanding protection
Optional arc fault circuit interrupter (AFCI) for additional safety
Surge Protection Level: TYPE II (DC) / TYPE II (AC)
Communication & Monitoring:
Supports GPRS, WiFi, Bluetooth, 4G, and LAN (optional).
RS485, RS232, and CAN communication interfaces for real-time monitoring.
Physical & Environmental Characteristics:
Ingress Protection (IP Rating): IP65 (suitable for indoor and outdoor installations).
Operating Temperature: -40°C to +60°C
Storage Temperature: 0°C to 35°C
Humidity Range: 0-100%
Noise Level: ≤55dB
Altitude Limit: ≤2000m
Cooling System: Intelligent Air Cooling
Cabinet Size (W/D/H): 422 × 658 × 254 mm
Weight: 38 kg
Certifications and Compliance:
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105
Safety Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty:
5 to 10 years, depending on installation site and warranty policy.
