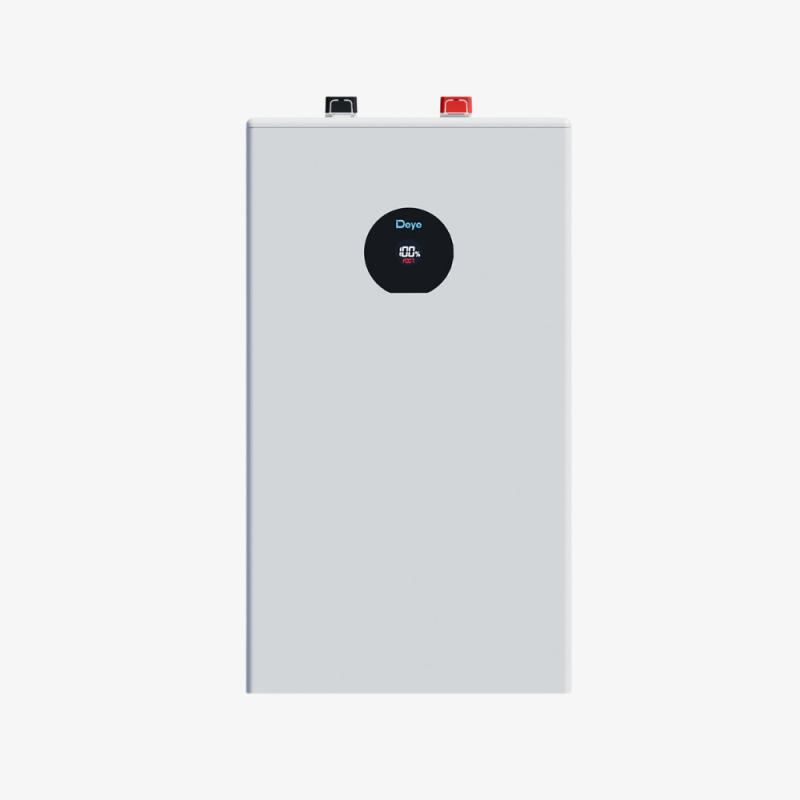

Deye SE-F16

Deye SE-F16

Login as partner to see prices

The Deye SE-F16 is a high-capacity 16 kWh LiFePO4 energy storage battery designed for solar and hybrid ESS systems. The model features a 51.2 V nominal voltage, 314 Ah capacity, IP21 protection rating, as well as LED status indication and a buzzer. It can be installed wall-mounted, floor-standing or in a stacked system, offering a flexible solution for residential and small commercial energy storage applications.

Warranty: 10 years.

Category: Brand:

Key Features

  • Battery technology: LiFePO4
  • Nominal energy: 16 kWh
  • Recommended depth of discharge: 90% DoD
  • Protection rating: IP21
  • Cooling: natural cooling
  • Scalability: a higher-capacity system can be created by connecting multiple battery modules in parallel, up to a maximum of 32 battery modules
  • With CAN-Bridge: up to 64 batteries
  • Monitoring: local battery monitoring and remote ESS system monitoring
  • Communication: CAN2.0, RS485, Bluetooth + APP
  • Maintenance: auto-networking and easy system monitoring
  • Status indication: LED indication for SOC, operating and protection status, plus buzzer

Technical Specifications

  • Capacity: 314 Ah
  • Nominal voltage: 51.2 V
  • Operating voltage range: 44.8–57.6 V
  • Nominal energy: 16 kWh
  • Recommended depth of discharge: 90% DoD
  • Cycle life: at least 6000 cycles at 25 °C ±2 °C, 70% EOL
  • Recommended charge current: 157 A
  • Maximum continuous charge current: 160 A
  • Peak charge current: 280 A for 10 seconds
  • Recommended discharge current: 157 A
  • Maximum continuous discharge current: 230 A
  • Peak discharge current: 280 A for 10 seconds
  • Charge / discharge rate: 0.5C / 0.7C
  • Energy throughput: 50 MWh

Design

  • Dimensions: 400 × 708 × 233 mm
  • Weight: approx. 109 kg
  • Display / indication: LED for SOC, operation and protection status, plus buzzer
  • Installation: wall-mounted, floor-standing, stack-mounted, optionally with wheels

Environmental Data

  • Charging operating temperature: 0–55 °C
  • Discharging operating temperature: -20–55 °C
  • Storage temperature: 0–35 °C
  • Relative humidity: 95%, non-condensing
  • Maximum installation altitude: ≤3000 m
  • Protection rating: IP21

Communication and System Integration

  • Communication protocols: CAN2.0, RS485
  • Bluetooth connection: supported
  • Mobile app: Bluetooth + APP support
  • Inverter connection: battery information can be transmitted to a compatible inverter
  • Parallel communication: communication between multiple battery modules is supported
  • Local monitoring: local battery monitoring is supported
  • Remote ESS monitoring: remote monitoring of the inverter and battery is supported

Certifications

UN38.3, CE, CB
