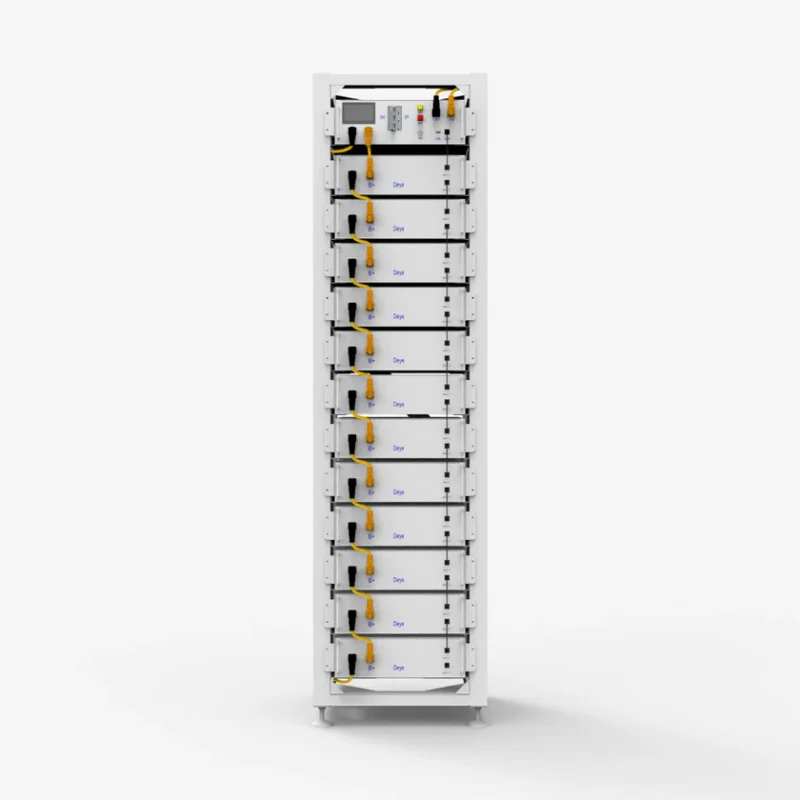

DEYE BOS-G Pro 3U-HRACK

Key features

• Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
• Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
• Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
• Fast installation: Standard 19-inch rack design allows easy integration into data center or industrial environments.
• Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
• Environmentally friendly: Completely free of toxic substances and built from recyclable materials.

Technical specifications (3U-HRACK – 13-level system)

• System capacity: Max 61.44 kWh (12 × 5.12 kWh modules)
• Nominal system voltage: 614.4 V
• Usable energy: ~55.3 kWh (at 90% DoD)
• Dimensions (W × H × D): 530 × 602 × 2219 mm
• Weight: approx. 622 kg (including batteries)
• Ingress protection: IP20
• Communication: CAN2.0 / RS485
• Recommended depth of discharge (DoD): 90%
• Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.

Compatibility

The system is fully compatible with Deye inverters, supports USB and remote update options, and up to 16 racks can be interconnected into a single large-scale system.
