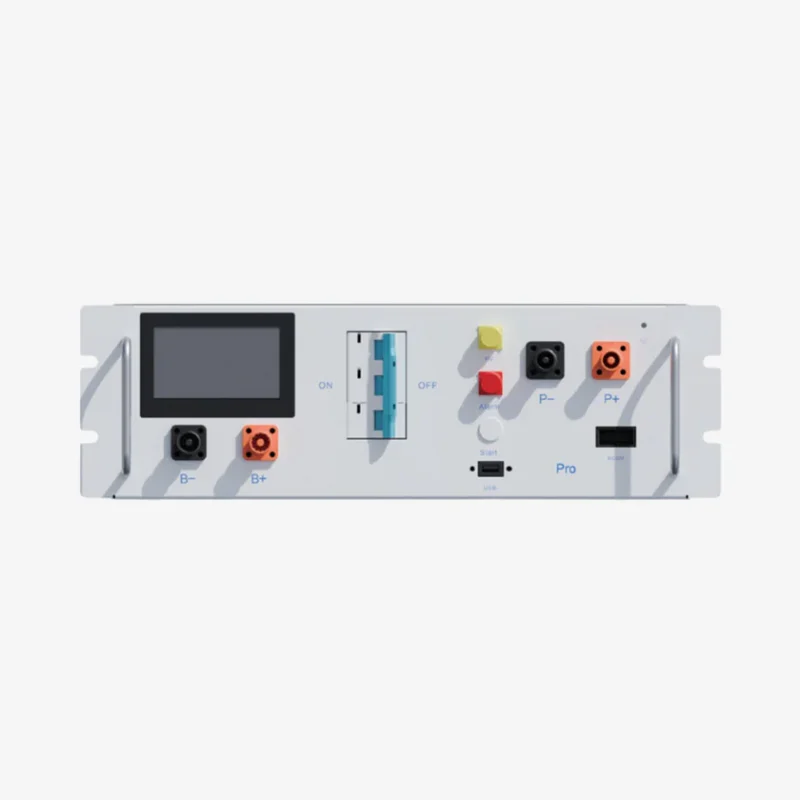

Deye BOS-G-PDU-2 (Pro) control box

Key features

• Nominal voltage range: 200 – 1000 V DC
• Nominal charge/discharge current: 100 A
• Maximum charge/discharge current: 120 A
• Input power supply: 12 V ±2% / 4.15 A
• Operating temperature: -20°C to +65°C
• IP rating: IP20
• Dimensions (W × D × H): 440 × 570 × 150 mm
• Weight: approx. 19 kg

Functions & application

• The BOS-G-PDU-2 is a complete cluster control box compliant with European or UK standards.
• It can be integrated with BOS-G Pro battery modules and is compatible with Deye inverters.
• Its primary functions include full battery string control, voltage regulation, overvoltage protection, and providing communication interfaces and connections.

Standard accessories

• 120-ohm terminating resistor
• 250 mm communication cable
• 140 mm power cable
• 2.1 m power cable
• EPCable2.0 (2 m, positive pole)
• ENCable2.0 (2 m, negative pole)
• 1000 mm communication cable between two racks
• 1000 mm power cable between two racks
• 140 mm grounding cable
